MotoCAP open day

A look behind the scenes at the riding gear testing centre


The MotoCAP motorcycle safety gear testing site at Deakin University in Geelong today held an open house in partnership with the launch for Motorcycle Awareness Month in Victoria, Australia. Its modest facility evaluates a range of clothing and is notable for developing a lot of expertise in assessing jackets, pants and gloves. Here is our quick overview.


(Guy 'Guido' Allen, October 5, 2024; top pic by MotoCAP)


motocap


Behind the public website is a crew which buys duplicate motorcycle gear from retailers, both from brick-and-mortar shops and online. The idea is to ensure the samples are random.


From there it's assessed for 'live-ability' with the assistance of experienced riders. Those issues include does it bend and conform when you sit on the bike, are fasteners accessible, does it generally do what you might expect on first meeting.


And here's a little detail: does it have metal parts (rivets/fasteners) that are on the outer shell and go through to touch your skin? If so, that's seen as a potential heat-transfer point that could burn you through friction.


The clothing is also literally dissected so the material and construction can be tested.


Among those tests...

motocap

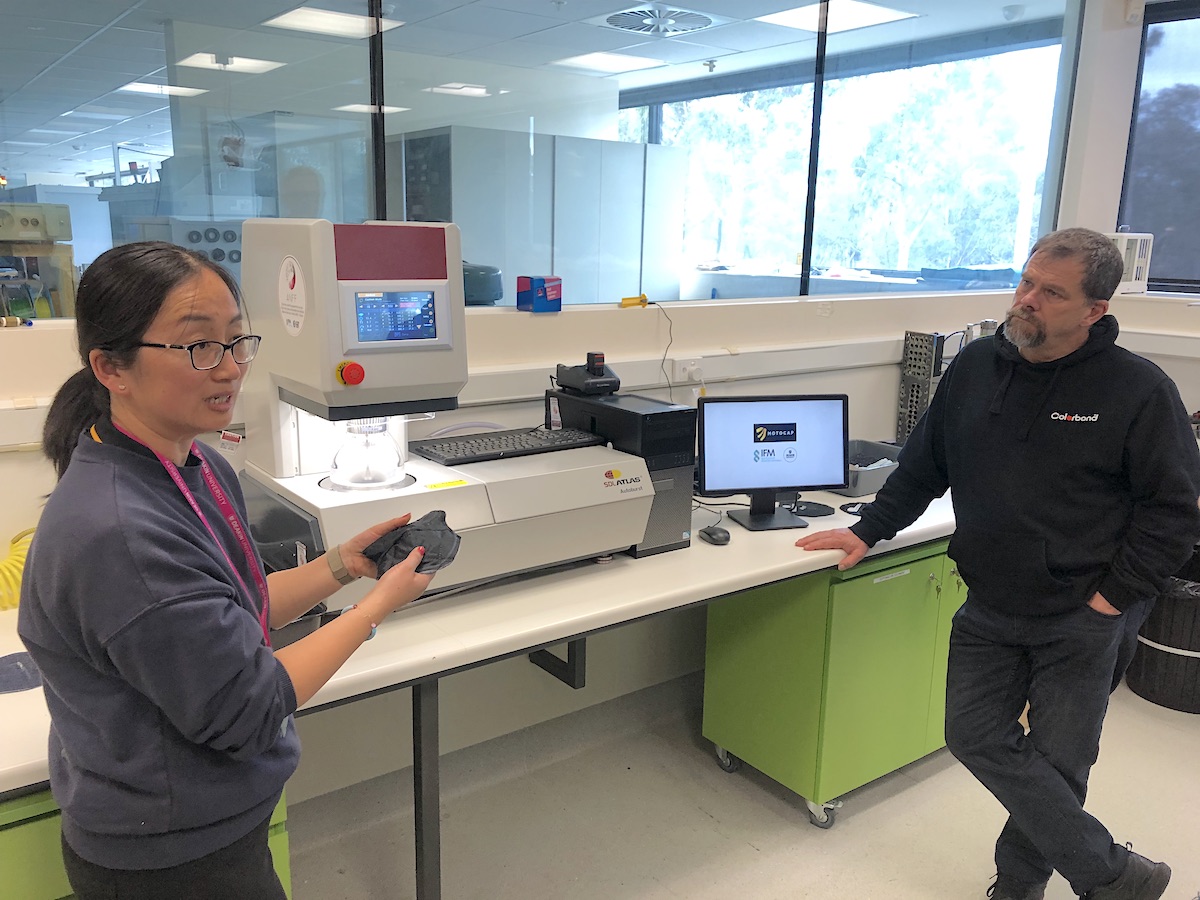

Trialling the strength of seams and even the material itself with a device to measure what pressure is required to make it fail.


motocap

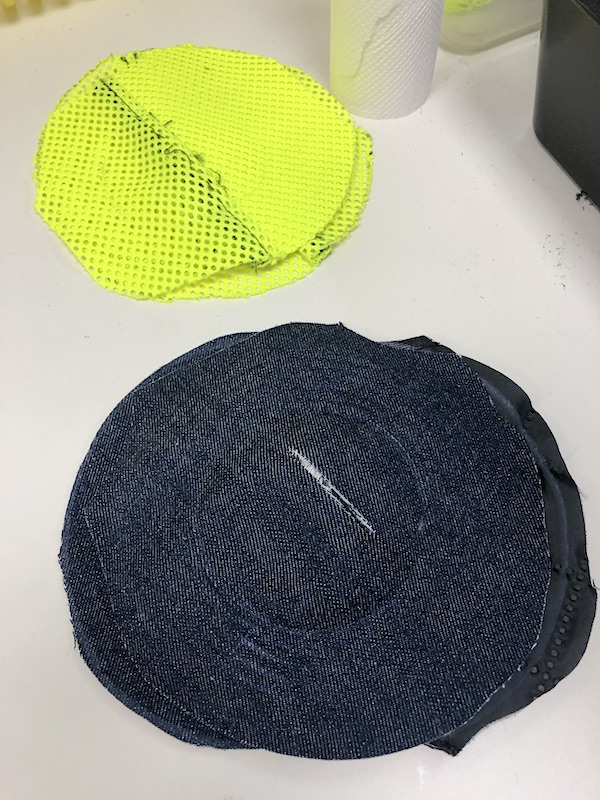

Above we have a section of liner where the seams have been tested, and a patch of denim where the material itself has been stress-tested.


motocap

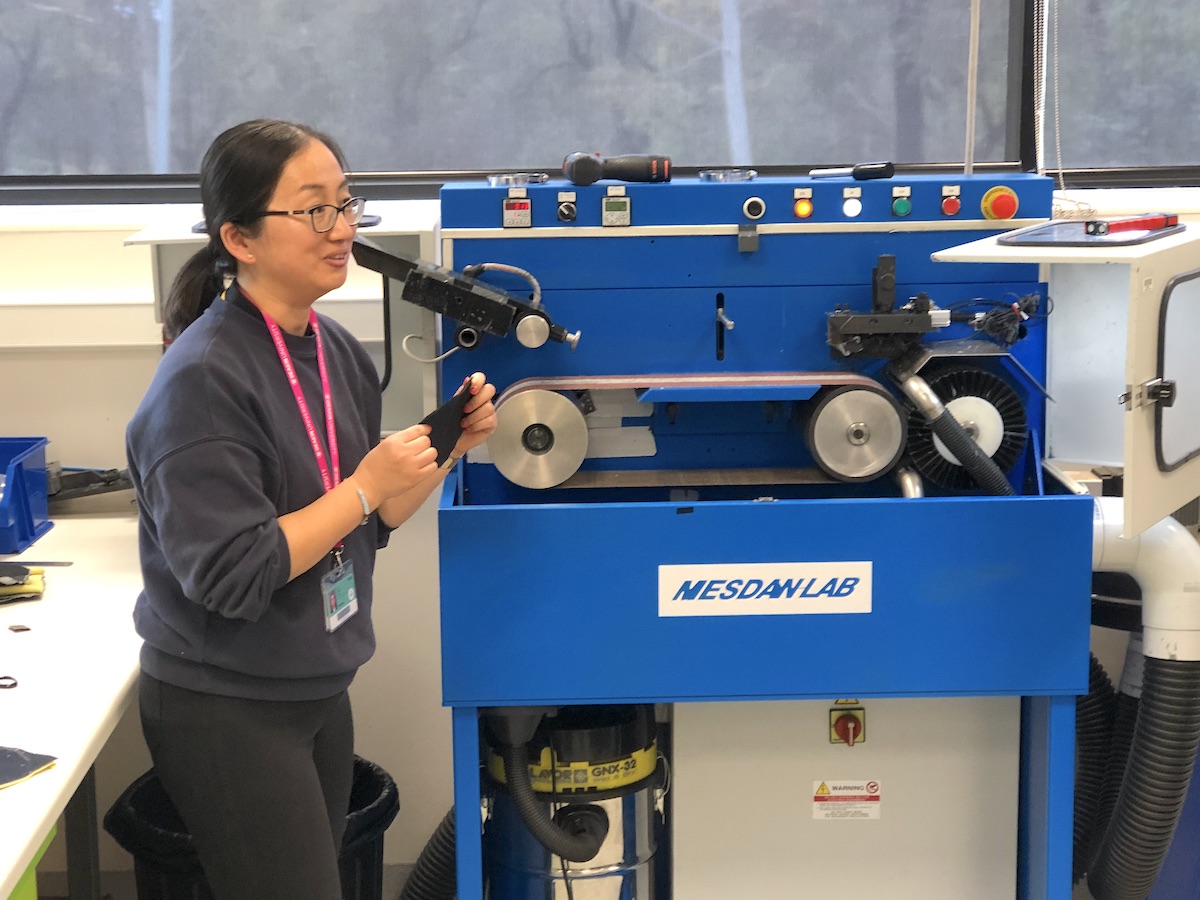

Next is what we like to call the 'belt and road' test. It's literally an abrasion test with what looks like a giant belt-sander that can be set to mimic road conditions, and very precisely measure performance. Just as a matter of interest, double-layered kevlar performed relatively well in the demo we witnessed.


motocap

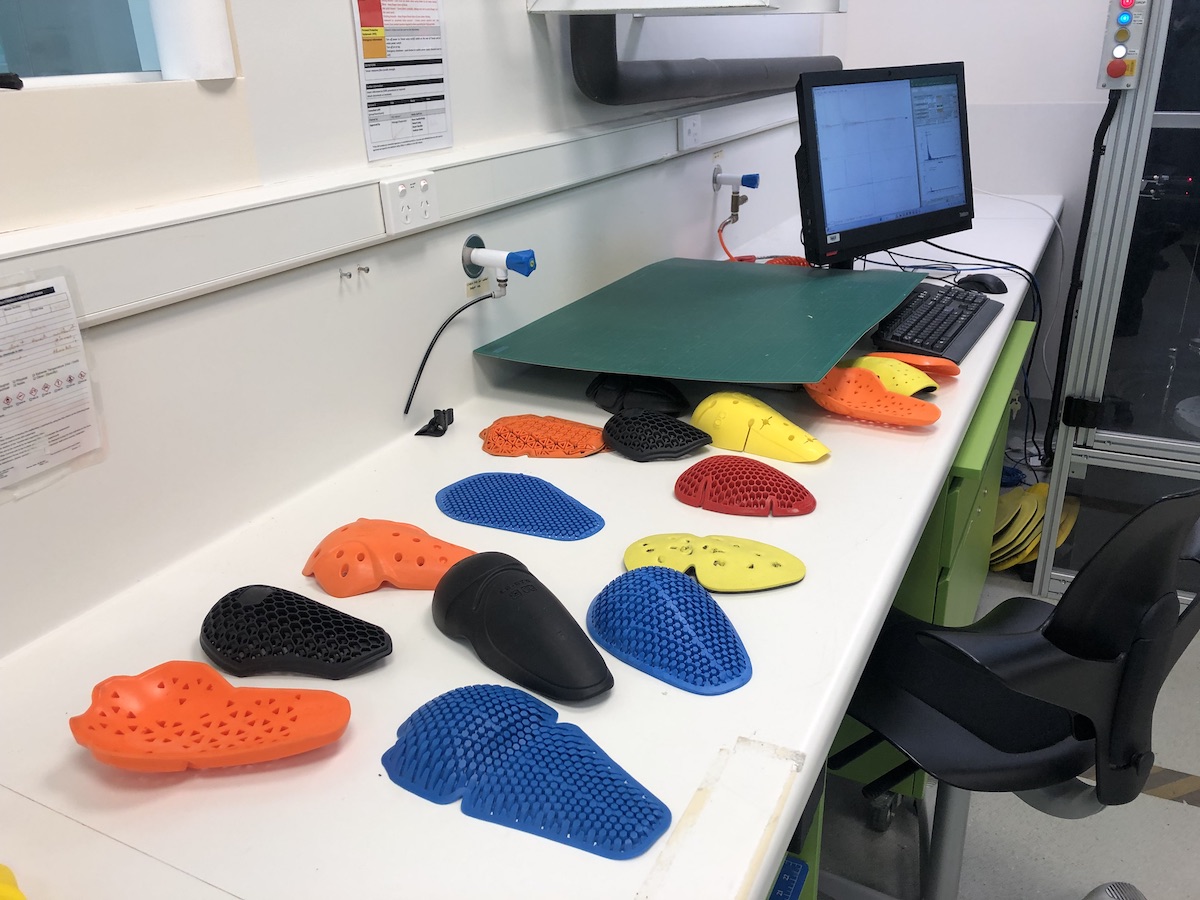

Armour was a popular topic and the quality can vary enormously. The researchers were too polite to say the word 'rubbish', but that clearly applied in one case that was carrying fake CE standard markings.


motocap

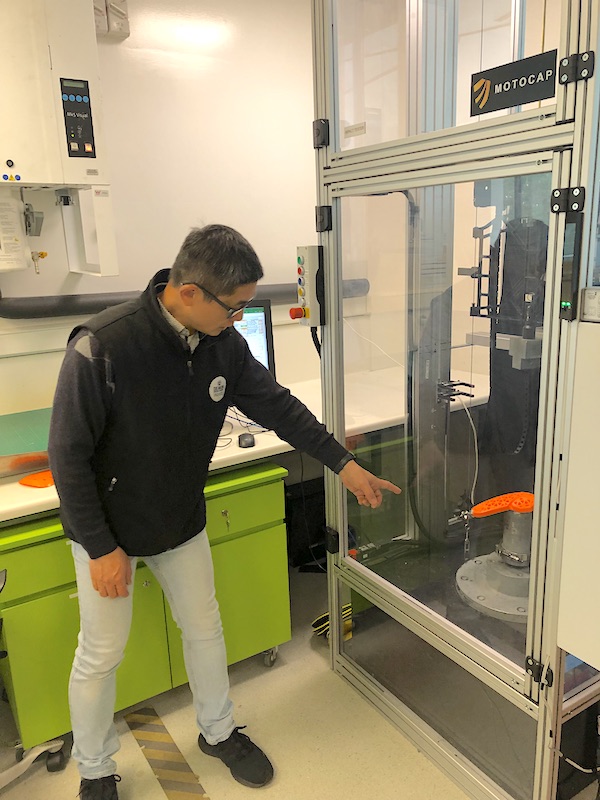

One of the tools for armour evaluation is this, which drops a weight on the material and measure how much force is absorbed. The differences between dodgy and Level 2 absorption is enormous.


motocap

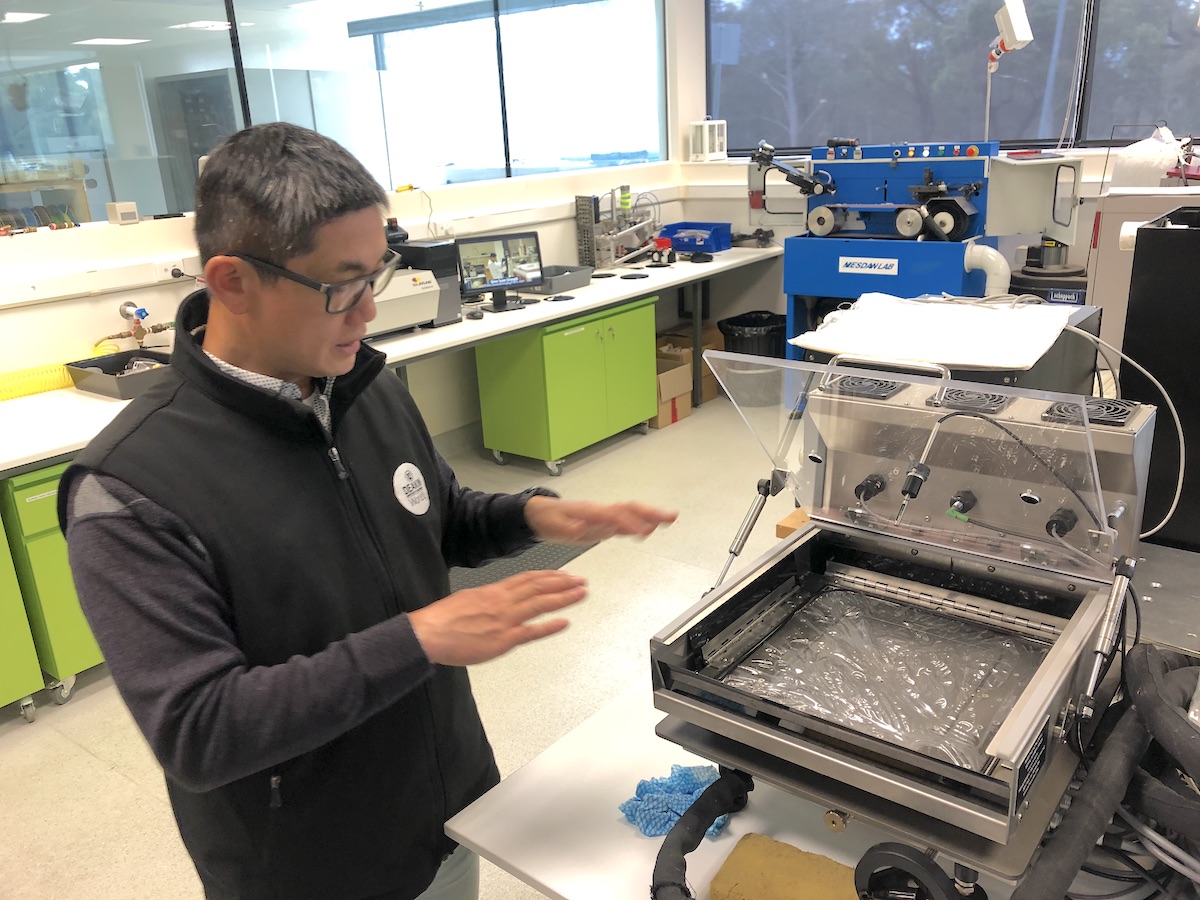

Something we weren't expecting was this, a device that can be used to measure breath-ability (temperature transfer) and the effectiveness of claims to wick away moisture.


motocap

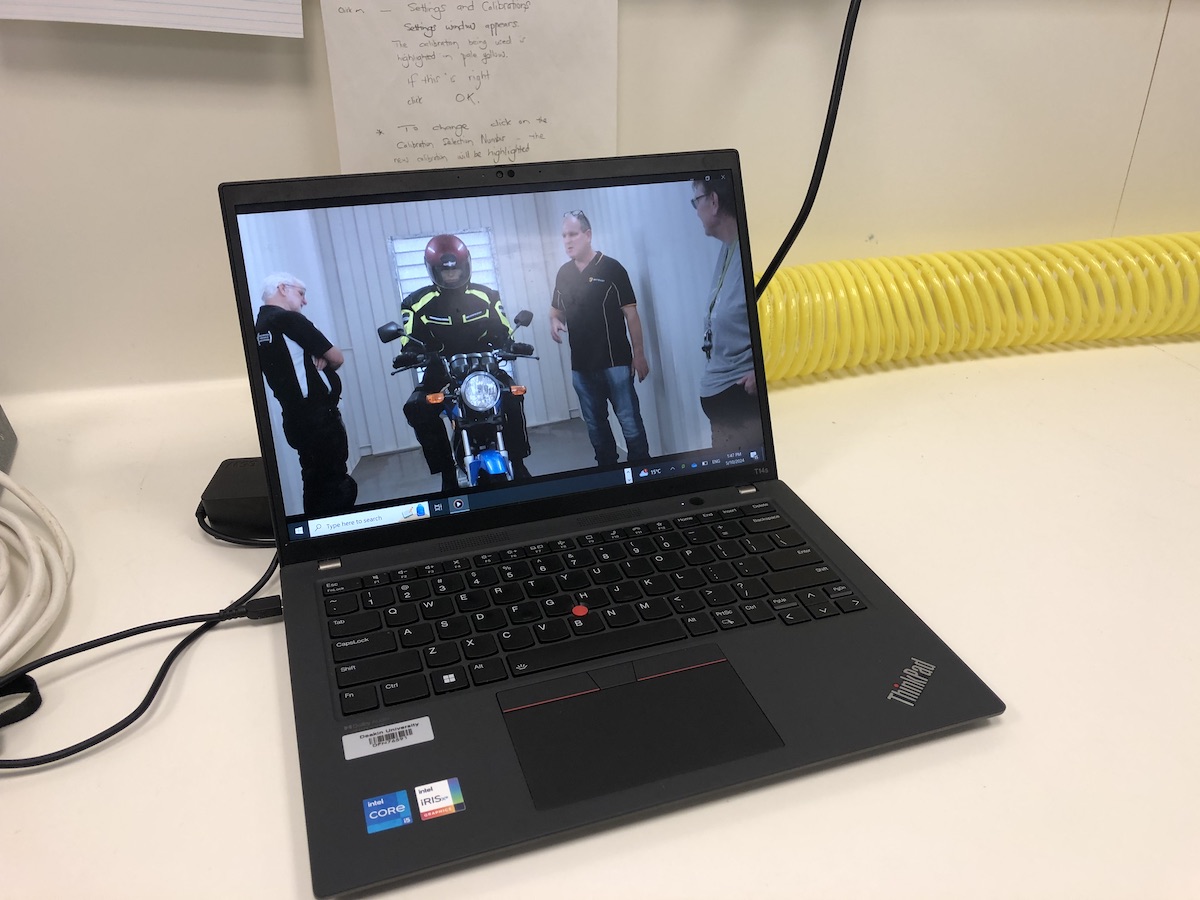

One section that wasn't open on the day was the rain room, though we were given a video demo. It's essentially a converted container that can set up a mist or light dousing to test any 'shower-proof ' claims. Fortunately it can be used with a test dummy rather than a real person in the riding gear!


MotoCAP is also working on a project to assess the longevity of riding clothing, or at least how quickly its protective qualities deteriorate. That report is yet to be completed, but is worth keeping an eye out for.


So are manufacturers taking any notice of this work? The belief is the local brands are and there is a sense they are modifying their range accordingly. One model that springs to mind is a DriRider Climate EXO 4 jacket, which in its latest iteration has scored a five-star safety rating.


motocap

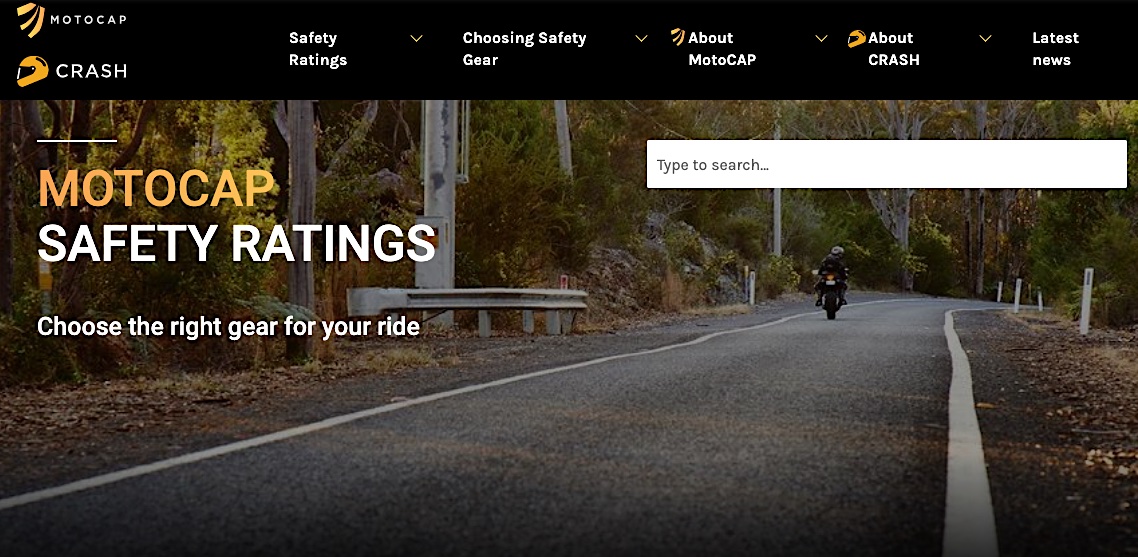

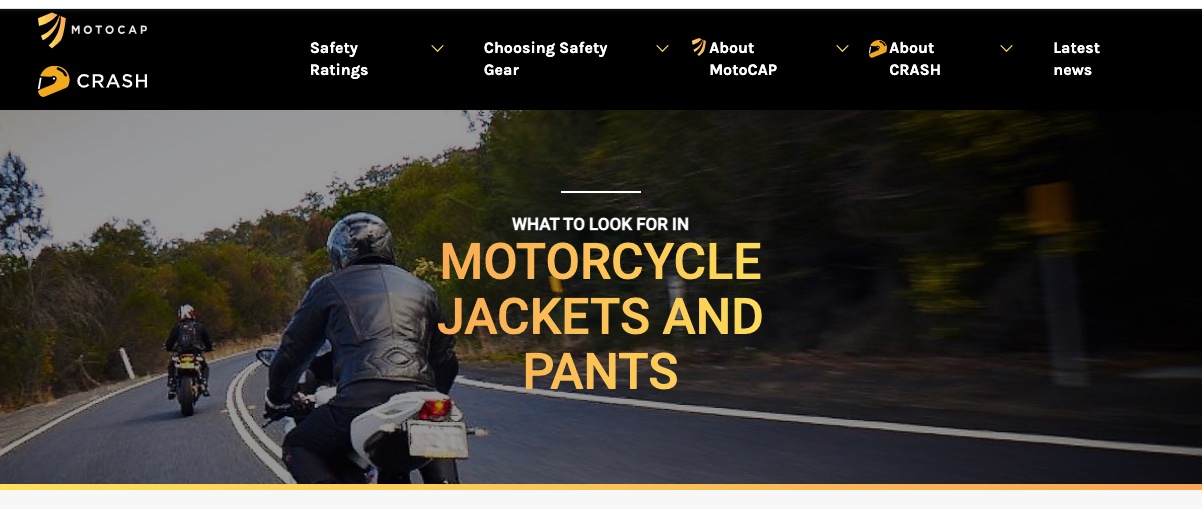

There is a lot going on behind the scenes with this project and it's well worth spending a bit of time on the website.


We reckon you just have to take it into account before you buy any riding gear.
